Need a simple, scalable and reliable solution for your studio? Look no further!
Mix-iT offers compact user-friendly control at an attractive price – and more…
Features
- Controls all Blackmagic Design ATEM Switchers.
- Compact but rugged design: 34,5 x 18,5 x 8 cm.
- PoE Powered or use supplied AC-adapter.
- Ethernet connection to ATEM, no computer needed.
- Flexible bus and button mapping.
- Quickly selects MediaPlayer content using rotary.
- Future-proof through user updatable firmware.
- Extension port for control of software mediaplayers.
- Direct control of Hyperdeck over Ethernet (new in v2.0).
- Direct playback of ATEM macros (new in v2.0).
- CE & FCC certified.
Promo video
Stay in control

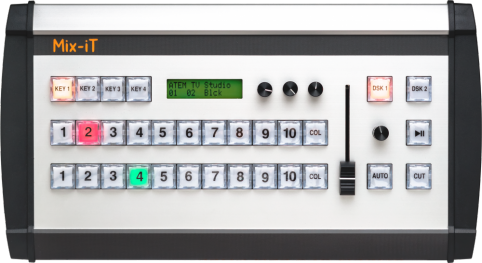

Mix-iT is a compact, versatile control panel for all Blackmagic Design ATEM switchers. It features 31 illuminated broadcast quality buttons, a fader and 4 rotary buttons, to effortlessly control these great switchers.
All input buttons and both the program and preview bus can be mapped to suiting your personal needs. Besides that, the direct control of ATEMs built-in MediaPlayers is one of the unique Mix-iT features. Macros let you automate a sequence of switcher actions that can be recalled with the press of a single button.
Bringing it all together
Mix-iT controls all important functions of the ATEM switcher. Detailed settings that are prepared with the Blackmagic design ATEM software on PC or Mac can be used.
Mix-iT can connect directly to the ATEM switcher, or to your Ethernet network with a computer that runs the ATEM software. The unit is powered through Power-over-Ethernet or with the supplied 7.5V DC adapter if PoE is not available.
The Mix-iT, live in action!
Please read our succesful cases here
Mix-iT does precisely what you need. With not one button more or less then you need. It’s ideal for our mobile studio.
We were looking for a simple, scalable and reliable solution for our webcast studio and mobile sets, that also included excellent support. We found it in Mix-iT!
Proudly designed and made in Amsterdam, The Netherlands
